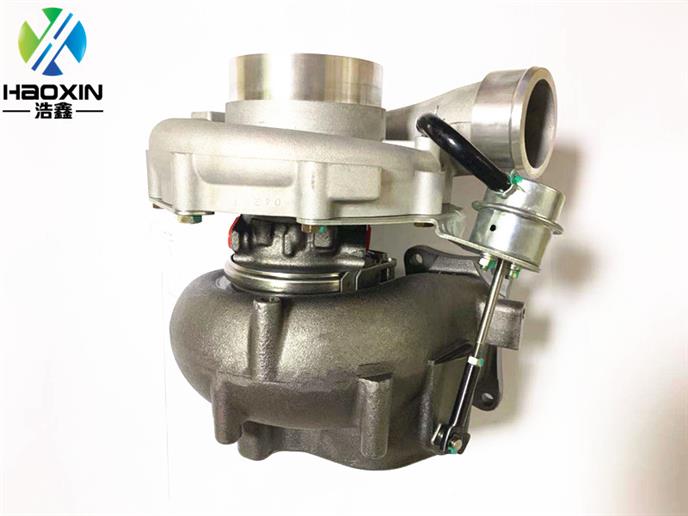

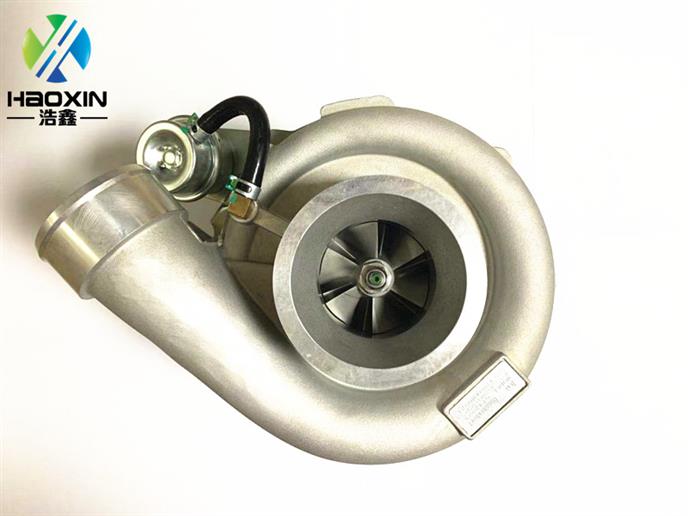

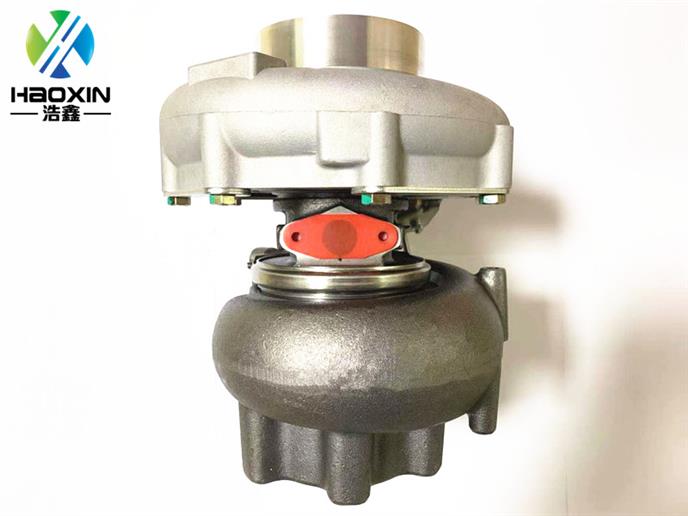

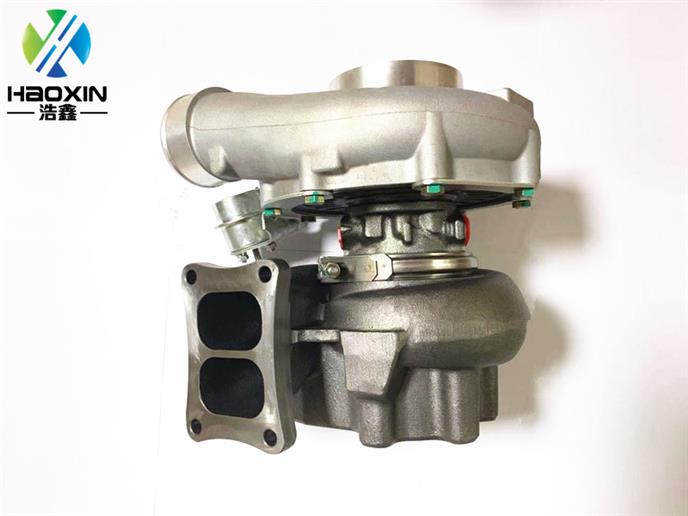

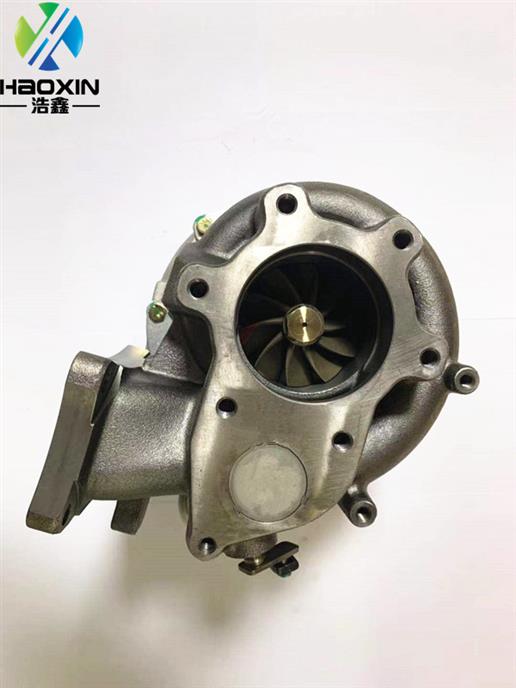

GT4292S 452281-5016s For1999-04 DAF Truck CF85, XF95, F95, CF85 With XE355CO, XE315CO, XF355M, XE3 Engine

GT4292S 452281-5016s For1999-04 DAF Truck CF85, XF95, F95, CF85 With XE355CO, XE315CO, XF355M, XE3 Engine
GT4292S 452281-5016s For1999-04 DAF Truck CF85, XF95, F95, CF85 With XE355CO, XE315CO, XF355M, XE3 Engine
Previous
Next
OEM No/Model:

1453883, 1609988, 1397101, 1601655, 1344152, 1377426

Place of Region:

China

Market Type:

After Market

Current Export Market:

North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East,Africa,Oceania

Product Details

Product Name:

GT4292S 452281-5016s For1999-04 DAF Truck CF85, XF95, F95, CF85 With XE355CO, XE315CO, XF355M, XE3 Engine

Product Attribute:

Engine Model:XE355CO, XE315CO, XF355M, XE355C1, XE390C, XE315C2, XE390C0

Turbo Model:GT4294S

Engine Power:Standardkw

Size:22*24*27cm

G.W:Standardkg

Turbine Material :K18

Power:315/355/390/530 HPkw

Displacement:12.6L, 12580 ccml

ETS Component:Turbin

ETS Type:other

Application:

1999-04 DAF Truck CF85, XF95, F95, CF85 with XE355CO, XE315CO, XF355M, XE3 Engine 2000- DAF 95XF .530 with XE355C Engine 2000- DAF 95XF .530 with XE390C0 Engine

Product Description:

1999-04 DAF Truck CF85, XF95, F95, CF85 with XE355CO, XE315CO, XF355M, XE3 Engine


Part Number
452281-5016S
Previous Version 452281-0004, 452281-0008, 452281-0009, 452281-0010, 452281-0012, 452281-0014, 452281-0016, 452281-5008S, 452281-16
OE number 1453883, 1609988, 1397101, 1601655, 1344152, 1377426
Year 1999-04
Description DAF Truck CF85, XF95, F95, CF85
CHRA 434251-0046 (434251-5046S) $461.00 NEW IN STOCK
Turbo Model GT4294S
Engine XE355CO, XE315CO, XF355M, XE355C1, XE390C, XE315C2, XE390C0
Engine Manufacturer DAF
Displacement 12.6L, 12580 ccm
KW 315/355/390/530 HP
RPM Max 1900/2000
Bearing Housing 452698-0007/410310-0004  NEW IN STOCK
Turbine Wheel 434281-0018 (Ind. 75.15 mm, Exd. 82. mm, 10 Blades) NEW IN STOCK
Comp. Wheel 434335-0048 (Ind. 67.79 mm, Exd. 94. mm, 6+6 Blades) NEW IN STOCK
Back plate 448890-0007 (3964367)  NEW IN STOCK
Heat shield Number 410366-0007 (410366-0003, 410366-0004)  NEW IN STOCK
Repair Kit 709153-0001/709153-0002/709153-0005 (1102042750) (13***75)  NEW IN STOCK
Turbine Housing 436737-0004
Compressor Cover 707709-0094
Actuator 434133-0094
Gasket (turbine inlet) 132040 (9749, 1S4295, 202873, 205396, 3500683, 210017-0000, 409038-0000)(1900000003)(417382 Replaced by 470939, 20784537)
Gasket (turbine outlet) 210239 (Stainless Steel)
Gasket oil inlet 129119 (210019, 201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 129120)(417378 Replaced by 420641)(1900000035)
Gasket (oil outlet) 210060 (311585, 148062, 2475013) (Paper)
Replaced By 451281-0018, 53319887145
Manufacturer HAOXIN
